Transport Shipping Cases
  • Application

    The sturdy Transport Shipping Case will protect your artwork from rough handling during shipping and transport. It's an excellent choice when you are shipping your portfolio, checking it onto a flight, or carrying it on mass transit.

    Dimensions listed reflect the interior size. For exterior dimensions and weights see the Specifications tab.

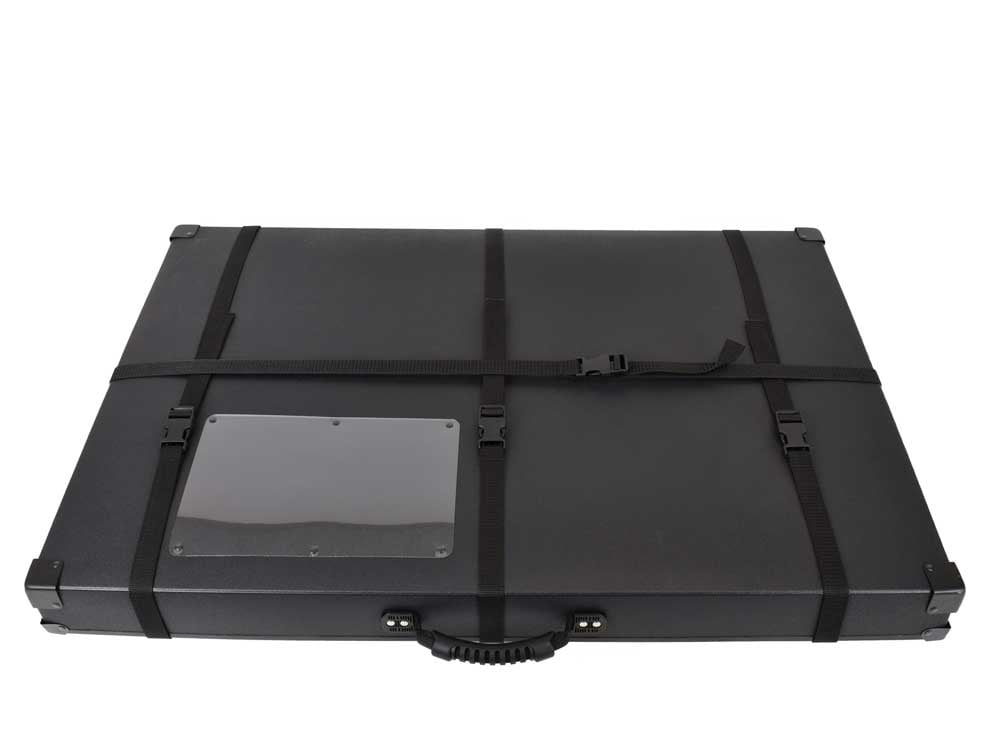

    The smallest case, #123-1319, has 3 straps, while all other sizes have a 4th strap that wraps around lengthwise, as pictured. Case in photos is the largest size, #123-2436.

  • Features

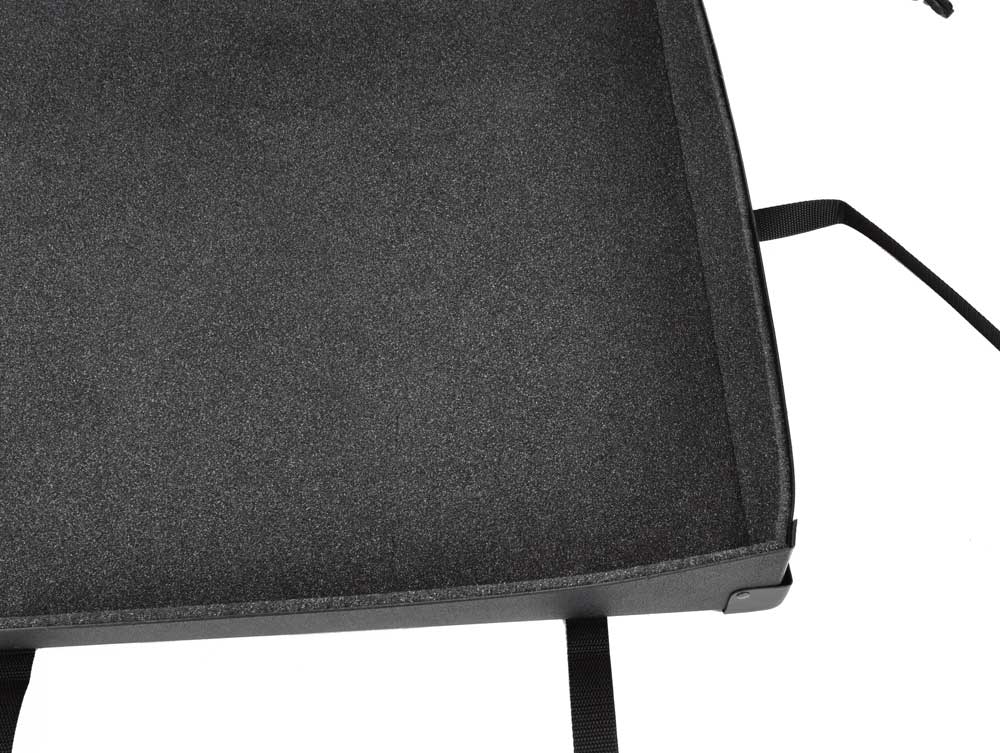

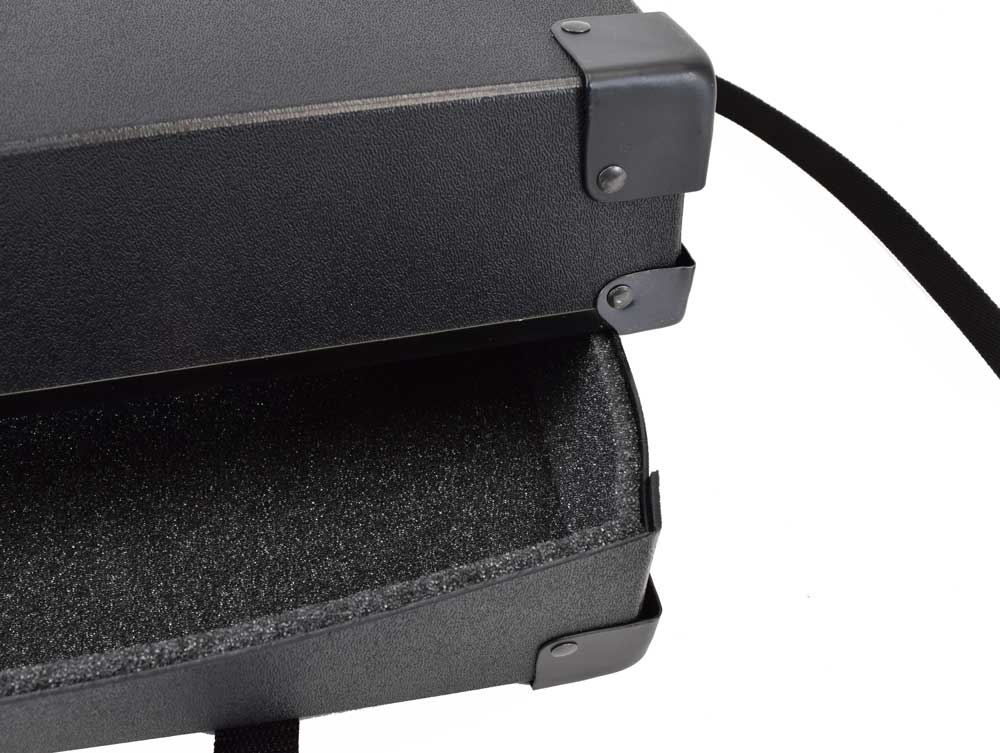

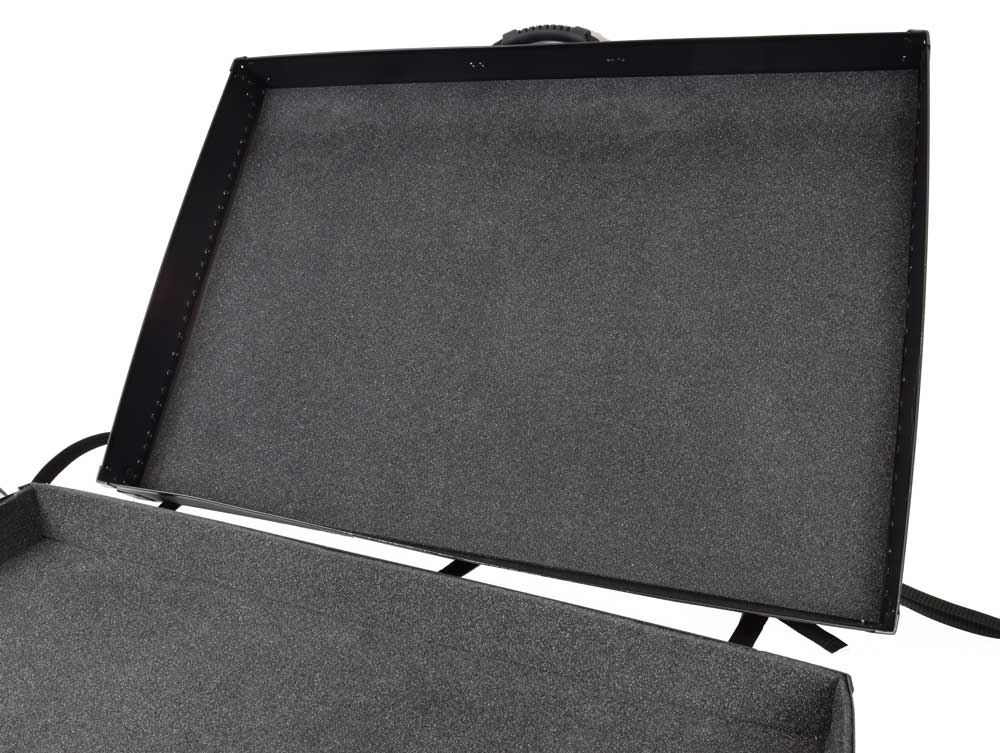

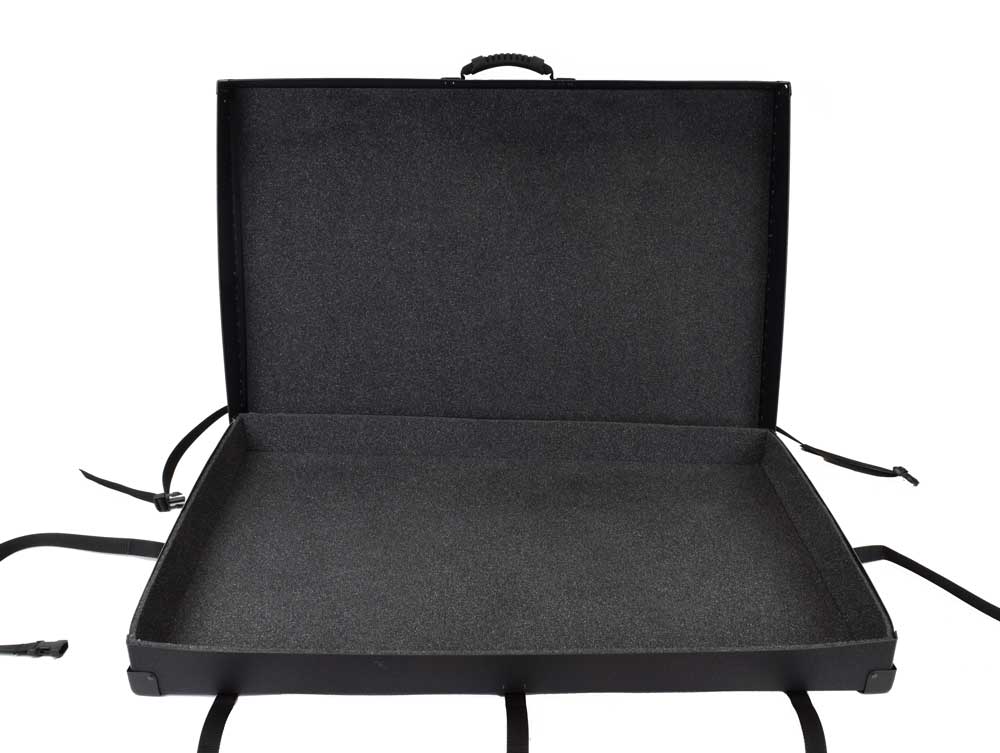

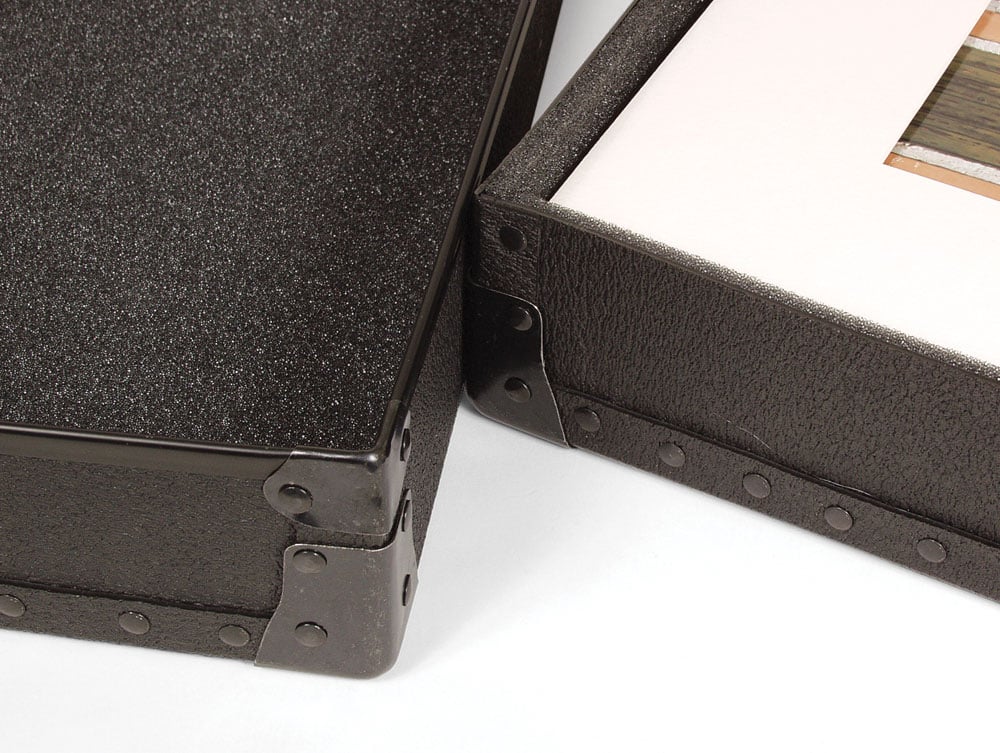

    Constructed of impact-resistant black polyethylene plastic that stands up to repeated use. Steel reinforced corners and outer edge of the removable top. The textured rigid plastic resists scuffing and will not tear. The interior is completely lined with 1/4’’ polyester foam.

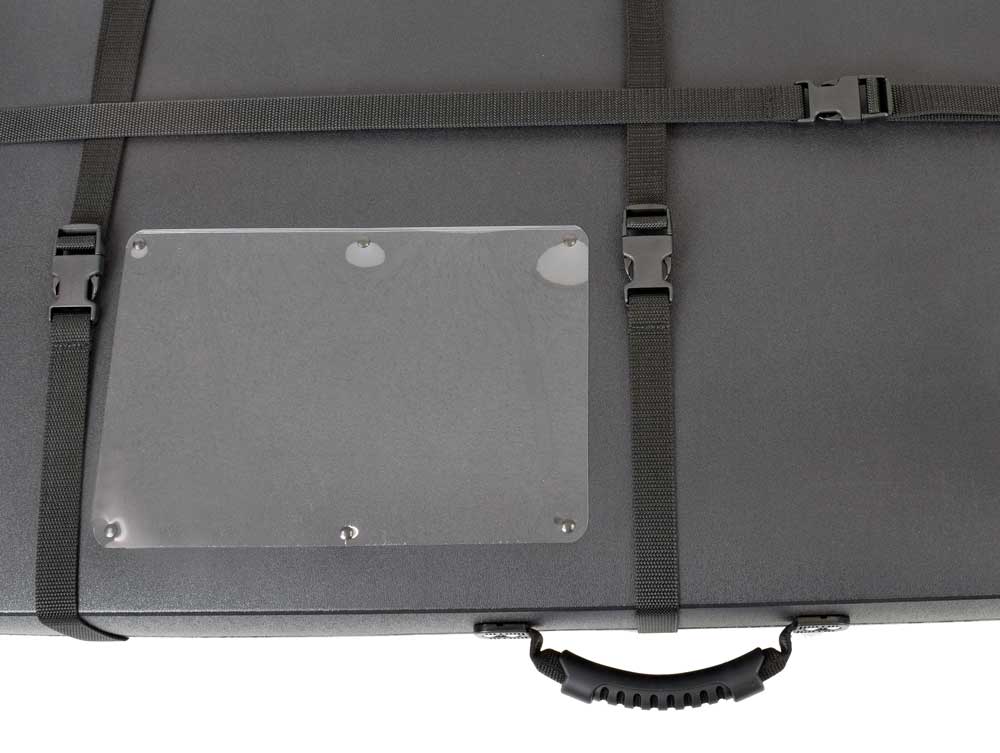

    An 8’’ x 12’’ plastic label area is designed to attach adhesive-backed shipping labels.

    Three 1’’-wide poly straps are attached to the case and close securely with high-impact plastic buckles. Cases 16’’ x 20’’ and larger have a 4th strap in the center that wraps around the case lengthwise.

    All cases are 3’’ deep with a telescoping top, which allows the case to have a four-inch functional capacity.

  • Specifications

    Case Dimensions and Weight

    #123-1319
    Interior: 13-1/4 x 19-1/4 x 3’’
    Exterior: 15 x 21 x 3-1/2’’
    Weight: 5.5 lbs.

    #123-1620
    Interior: 16-1/4 x 20-1/4 x 3’’
    Exterior: 18 x 22 x 3-1/2’’
    Weight: 6.5 lbs.

    #123-1722
    Interior: 17-1/4 x 22-1/4 x 3’’
    Exterior: 19 x 24 x 3-1/2’’
    Weight: 7 lbs.

    #123-2024
    Interior: 20-1/4 x 24-1/4 x 3’’
    Exterior: 22 x 26 x 3-1/2’’
    Weight: 9.5 lbs.

    #123-2430
    Interior: 24-1/4 x 30-1/4 x 3’’
    Exterior: 26 x 32 x 3-1/2’’
    Weight: 10 lbs.

    #123-2436
    Interior: 24-1/4 x 36-1/4 x 3’’
    Exterior: 26 x 38 x 3-1/2’’
    Weight: 11.5 lbs.

Transport Shipping Case - 3 Inch Depth ITEM# : QTY. 1+ : ORDER :
13-1/4 x 19-1/4 x 3''
123-1319 $218.00
16-1/4 x 20-1/4 x 3''
123-1620 $229.95
17-1/4 x 22-1/4 x 3''
123-1722 $238.90
20-1/4 x 24-1/4 x 3''
123-2024 $272.55
24-1/4 x 30-1/4 x 3''
123-2430 $315.15
24-1/4 x 36-1/4 x 3''
123-2436 $329.45
