METAL EDGE BOXES

3 Inch Drop Front Boxes

  • Application

    Drop Front Boxes are perfect for the storage of prints, photos, art and similar mounted or unmounted documents that are best stored flat. This style of box is also well-suited for digital prints, musical scores, pamphlets, letters, newspapers and other flat collectibles.

  • Features

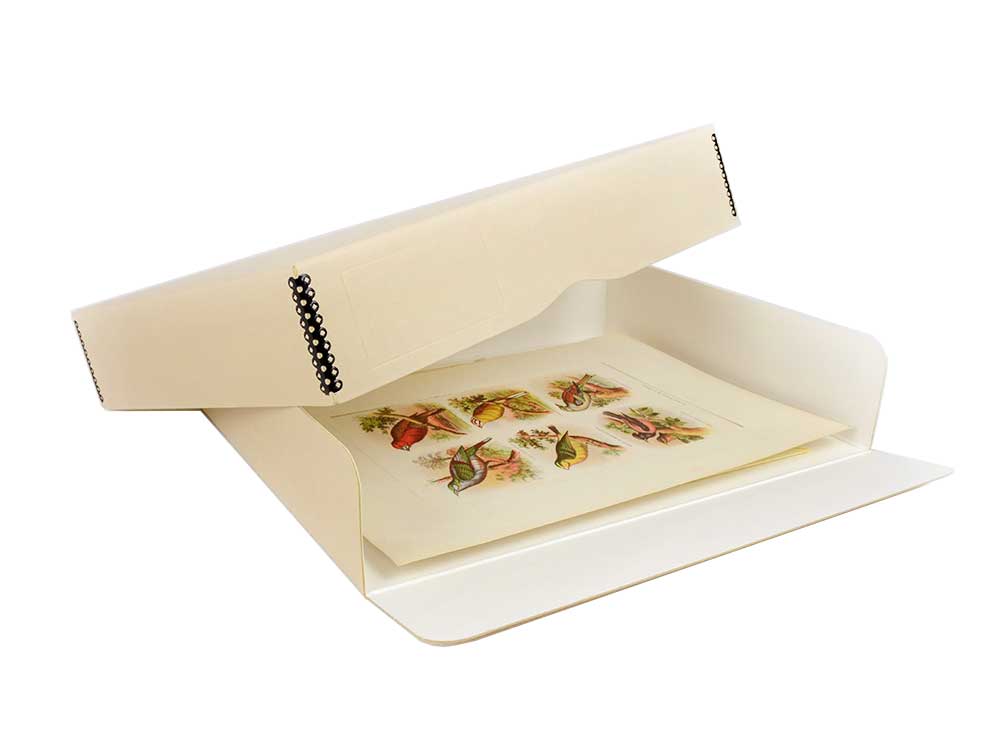

    Metal-edged drop front boxes consist of a removable top and a bottom with a hinged ’’drop front’’ panel on one of the long sides. This feature ’’opens’’ the bottom section so the contents can be inserted, removed or examined safely, without bending or flexing the contents in any way. The risk of ’’dog-earing’’ your materials is also greatly minimized.

    Our boxes are manufactured from heavyweight ArchivalGrade™ boxboard. Metal edge clamps are anti-corrosion treated with a black polyester coating with a wax-free polyester finish on the blind side. These clamps provide both rigidity and high stacking strength.

    Watch Archival Methods' Drop Front Box Video.

    Archival Solution of the Week Blog: 3-Inch Drop Front Box

  • Specifications

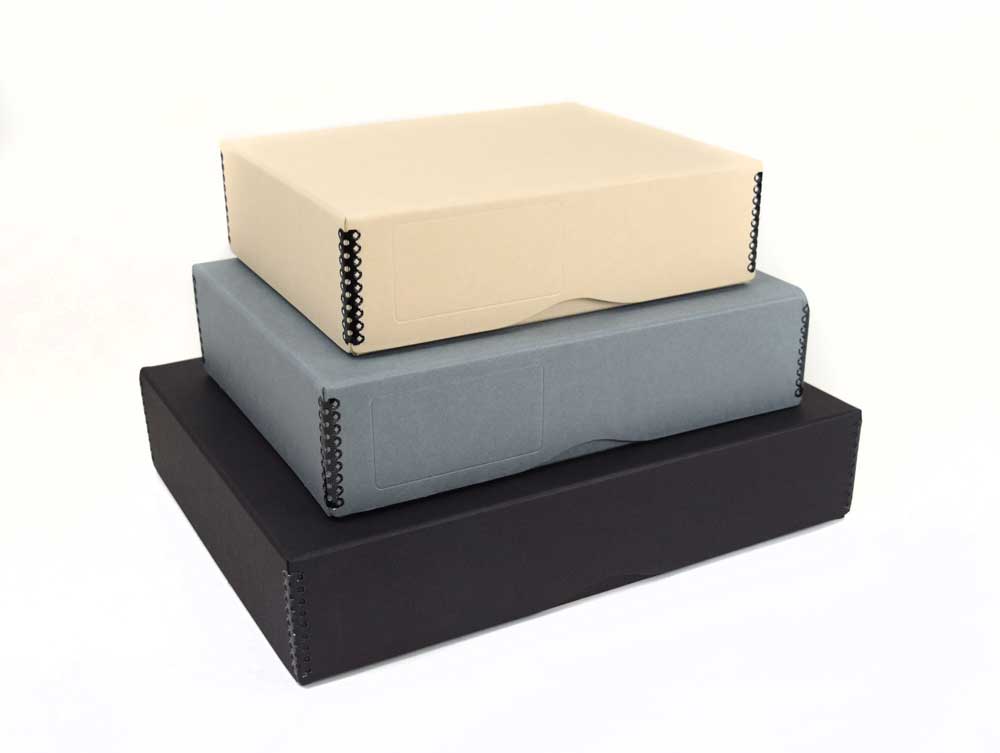

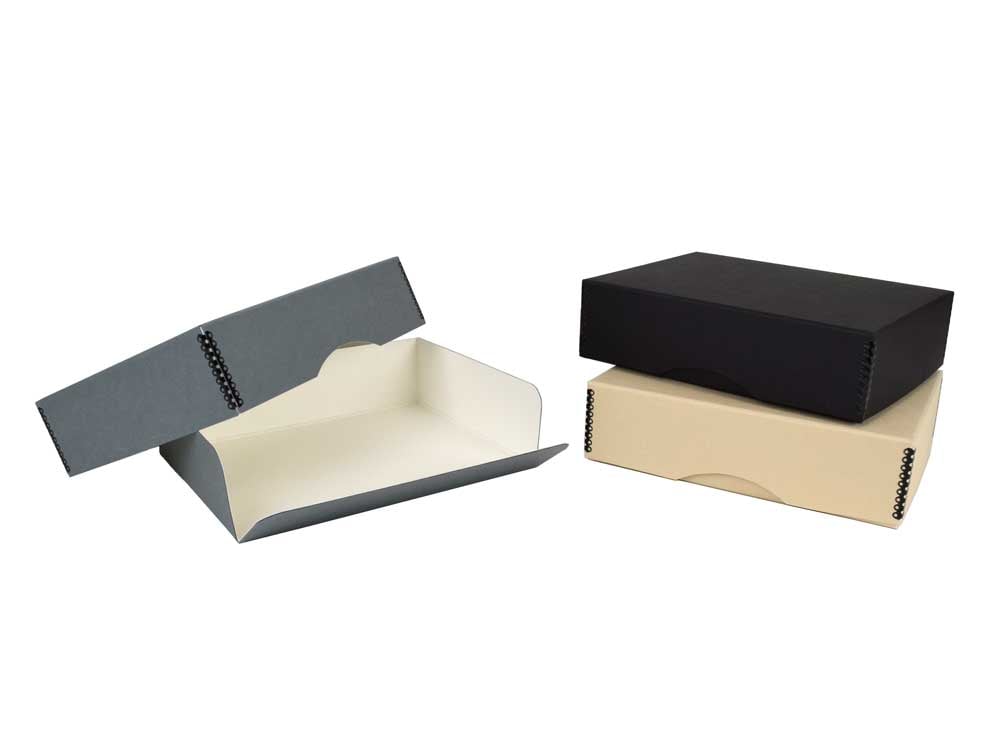

    ArchivalGrade Boxboard Color Tan / Gray / Black

    Tan, Black and Gray: thickness .056

    Tan and Gray finish: smooth plate finish. Black finish: textured paper laminated on acid- free black

    Made from fully bleached, high alpha cellulose pulp. It does not contain any post consumer waste recycled pulp. Paper is free of metal particles, waxes, plasticizers, residual bleach, peroxide, sulfur content is less than 0.0008% reducible sulfur.

    The lignin content is measured by the phloroglucinol test with a Kappa number of 5 or less.

    Metallic Impurities, Iron will not exceed 150 ppm and copper shall not exceed 6 ppm.No optical brightening agents are used in the pulp.

    The paper contains a minimum of 3% calcium carbonate (CaCO3) with a pH range 8-9.5

    Alkaline or neutral sizing are used. No alum rosin or rosin sizing are used.

    Color dyes are light-fast and non-bleeding.

    Surface of the paper is smooth and free from knots, shives and abrasive particles.

    Board will not degrade and cause harm to artifacts stored in boxes made from this paper.

    This paper passes the PAT (Photographic Activity Test) ISO IT 18916 (formerly ISO 14523 ANSI IT9.16).

    All dimensions are interior box sizes

  • Ordering Info

    Need a box size you don’t see listed? We would be happy to provide a quotation. Visit Imprints and Custom Products for more details.

Drop Front Boxes – Tan - 3 inch deep ITEM# : QTY. 1 : QTY. 2-9 : QTY. 10+ : ORDER :
8-1/2 x 10-1/2 x 3'' Tan 01-030 $16.70 $15.05 $14.20
9-1/2 x 12-1/2 x 3'' Tan 01-031 $17.15 $15.45 $14.60
11-3/4 x 15 x 3'' Tan 01-033 $17.25 $15.55 $14.65
11-1/2 x 17-1/4 x 3'' Tan 01-034 $22.15 $19.95 $18.85
12-3/4 x 16-5/8 x 3'' Tan (Will Hold A3 Paper) 01-040 $26.95 $24.25 $22.90
13-3/4 x 19-1/2 x 3'' Tan 01-035 $27.00 $24.30 $22.95
14-1/2 x 18-1/2 x 3'' Tan 01-036 $27.05 $24.35 $23.00
16-1/2 x 20-1/2 x 3'' Tan 01-037 $28.05 $25.25 $23.85
16-1/2 x 22-1/2 x 3'' Tan 01-038 $29.15 $26.25 $24.80
20-1/2 x 24-1/2 x 3'' Tan 01-039 $30.10 $27.10 $25.60
Drop Front Boxes – Gray - 3 inch deep ITEM# : QTY. 1 : QTY. 2-9 : QTY. 10+ : ORDER :
9-1/2 x 12-1/2 x 3'' Gray 01-531 $17.15 $15.45 $14.60
11-3/4 x 15 x 3'' Gray 01-533 $17.25 $15.55 $14.65
14-1/2 x 18-1/2 x 3'' Gray 01-536 $27.05 $24.35 $23.00
16-1/2 x 20-1/2 x 3'' Gray 01-537 $28.05 $25.25 $23.85
20-1/2 x 24-1/2 x 3'' Gray 01-539 $30.10 $27.10 $25.60
Drop Front – Gray - 2 inch deep ITEM# : QTY. 1 : QTY. 2-9 : QTY. 10+ : ORDER :
22-1/2 x 28-1/2 x 2'' Gray 01-542 $39.85 $35.85 $33.85
Drop Front Boxes – Black - 3 inch deep ITEM# : QTY. 1 : QTY. 2-9 : QTY. 10+ : ORDER :
8-1/2 x 10-1/2 x 3'' Black 01-130 $19.40 $17.45 $16.50
11-3/4 x 15 x 3'' Black 01-133 $20.50 $18.45 $17.45
11-1/2 x 17-1/4 x 3'' Black 01-134 $21.60 $19.45 $18.35
12-3/4 x 16-5/8 x 3'' Black (Will Hold A3 Paper) 01-140 $32.95 $29.65 $28.00
13-3/4 x 19-1/2 x 3'' Black 01-135 $33.55 $30.20 $28.50
16-1/2 x 20-1/2 x 3'' Black 01-137 $33.85 $30.45 $28.75
