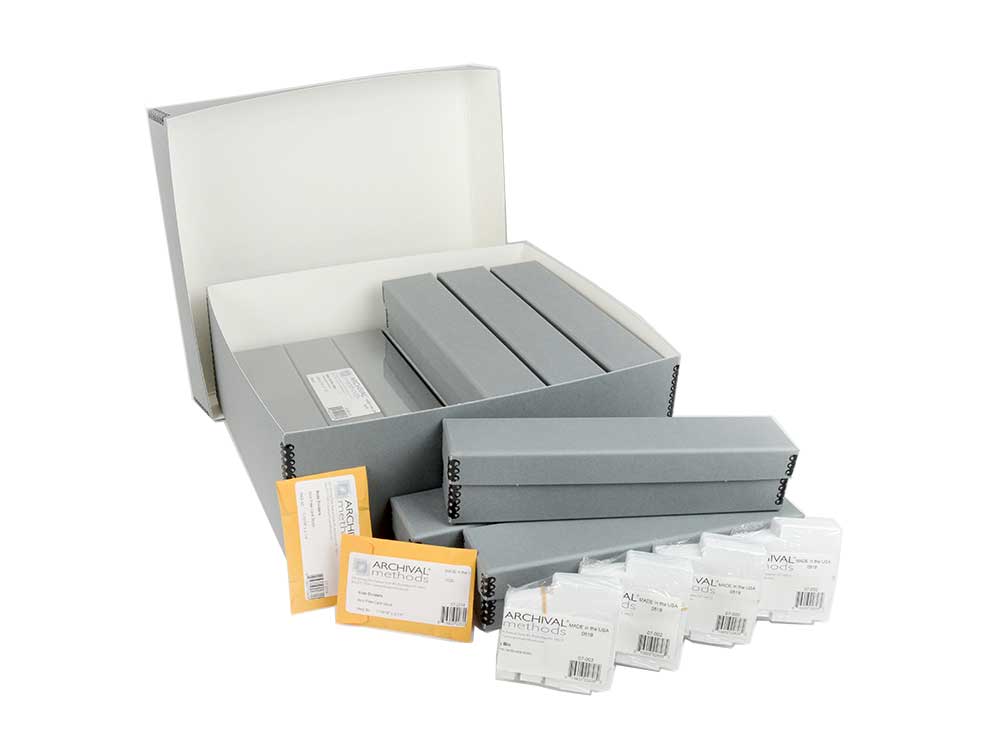

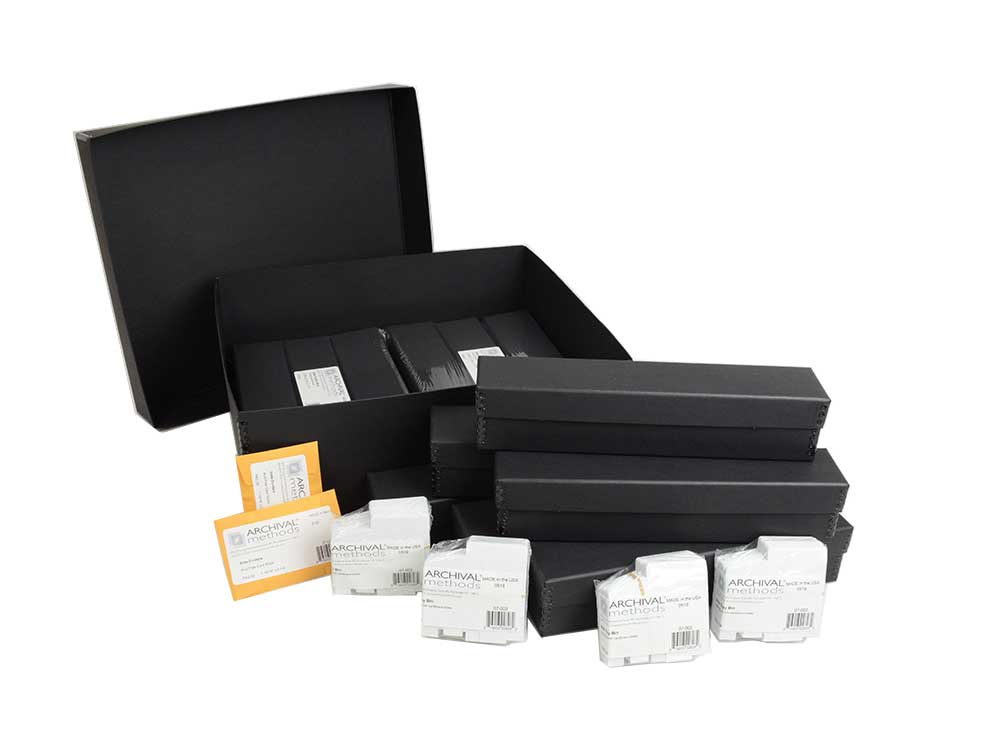

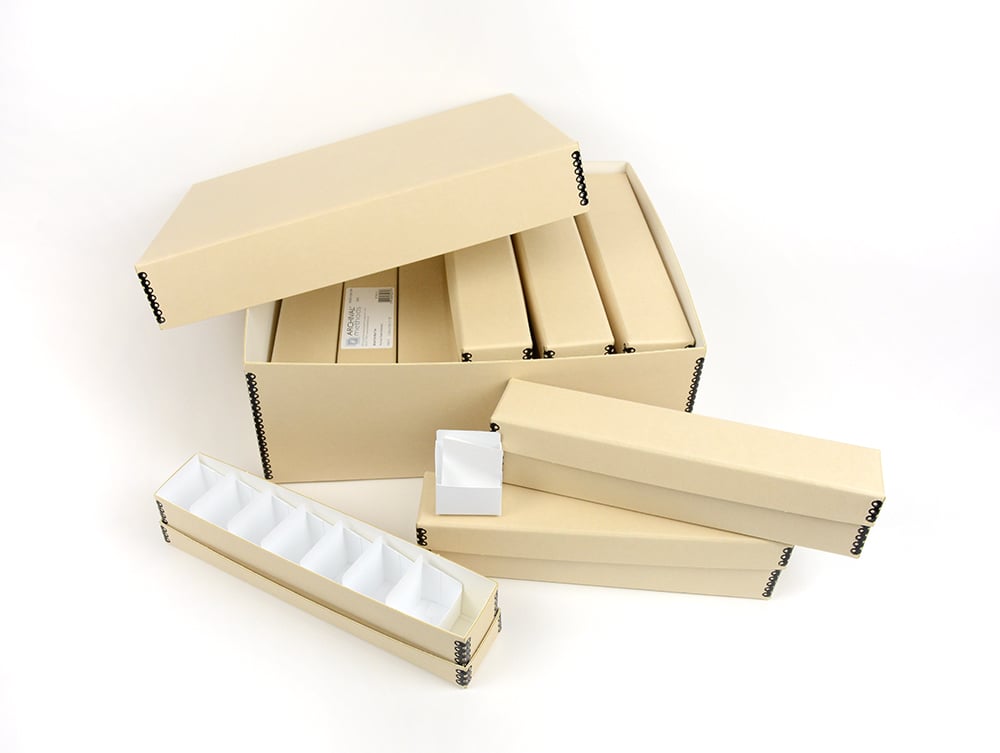

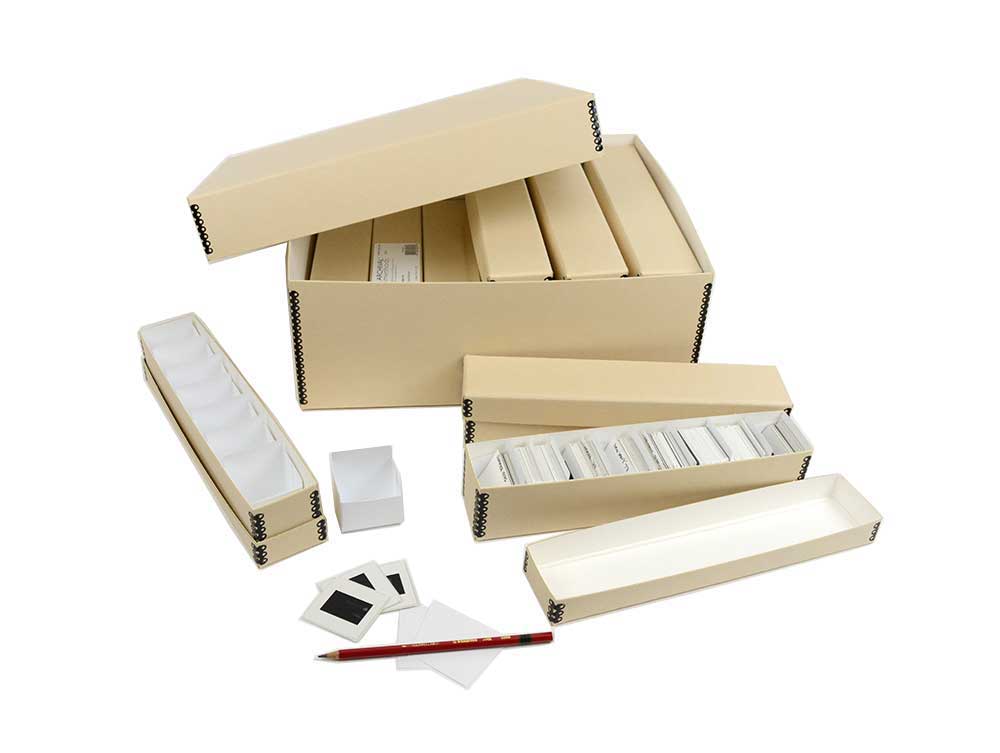

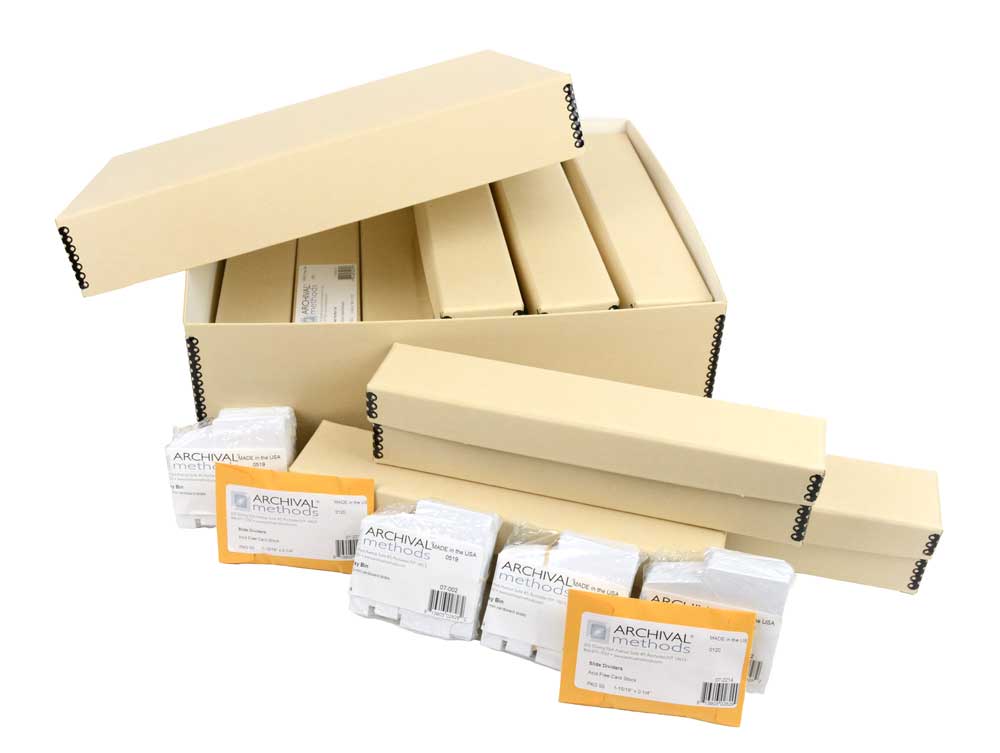

Slide Kit Components:
• (1) Metal Edge Box that holds and protects the 12 individual Slide Boxes.
• (12) 35mm Slide Boxes to hold Slide Tray Bins
• (96) Slide Tray Bins to group slides together
• (100) Acid-free Slide Dividers for labeling
• (1) Adhesive Back Vinyl Label to label the outside of your box. It measures 3-3/4 x 1-3/4 H

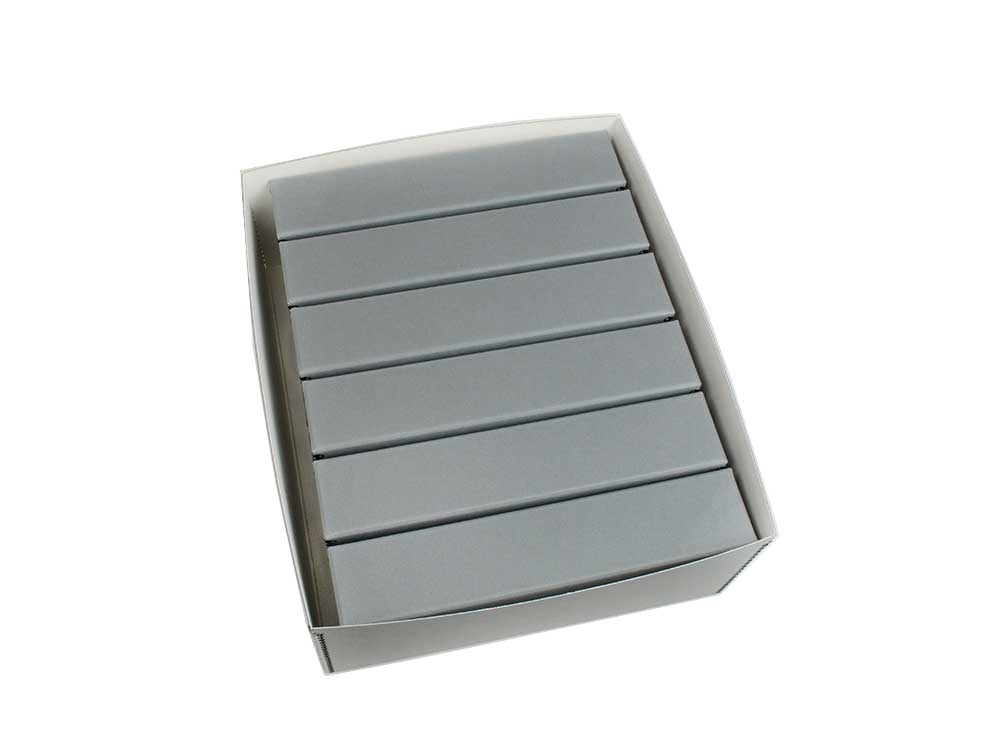

Short Top Master Box - 12-1/2 x 15 x 5-3/4 Short Top Metal Edge Box (Tan: 04-015, Black: 04-115 or Gray: 04-515) serves as the outer box holding 12 of the Slide Boxes.

35mm Slide Box Each box safely stores 200 standard, cardboard or plastic mounted slides or approximately 80 glass-mounted slides. Interior dimensions are 2 x 11-3/8 x 2-1/4’’ H. (Can be purchased separately in packages of 3.)

Slide Tray Bin Holds twenty-five 35mm cardboard mounted slides each. Eight Slide Tray Bins fit within each Slide Box. The trays have an extended back wall lip or tab for labeling. Trays have a “pop and lock” easy set-up design.

Acid-free Card Stock Slide Dividers Paper inserts separate any number of slides in Slide Tray Bin or Boxes and can be used to label contents.

Adhesive Back Vinyl Label measures 3-3/4 x 1-3/4 H. Attach it to the outside of your box to label contents. Paper label can be changed, if needed.

ArchivalGrade Boxboard Specifications Color Tan, Black, and Gray

Tan, Black, and Gray board thickness .056

Tan / White finish: smooth plate finish. Black finish: textured paper laminated on acid-free black core. Gray/ White finish: smooth plate finish.

Made from fully bleached, high alpha cellulose pulp. It does not contain any post consumer waste recycled pulp. Paper is free of metal particles, waxes, plasticizers, residual bleach, peroxide, sulfur content is less than 0.0008% reducible sulfur.

The lignin content is measured by the phloroglucinol test with a Kappa number of 5 or less.

Metallic Impurities, Iron will not exceed 150 ppm and copper shall not exceed 6 ppm.No optical brightening agents are used in the pulp.

The paper contains a minimum of 3% calcium carbonate (CaCO3) with a pH range 8-9.5

Alkaline or neutral sizing are used. No alum rosin or rosin sizing are used.

Color dyes are light-fast and non-bleeding.

Surface of the paper is smooth and free from knots, shives and abrasive particles.

Board will not degrade and cause harm to artifacts stored in boxes made from this paper.

This paper passes the PAT (Photographic Activity Test) ISO 14523 formally ANSI IT9.16
